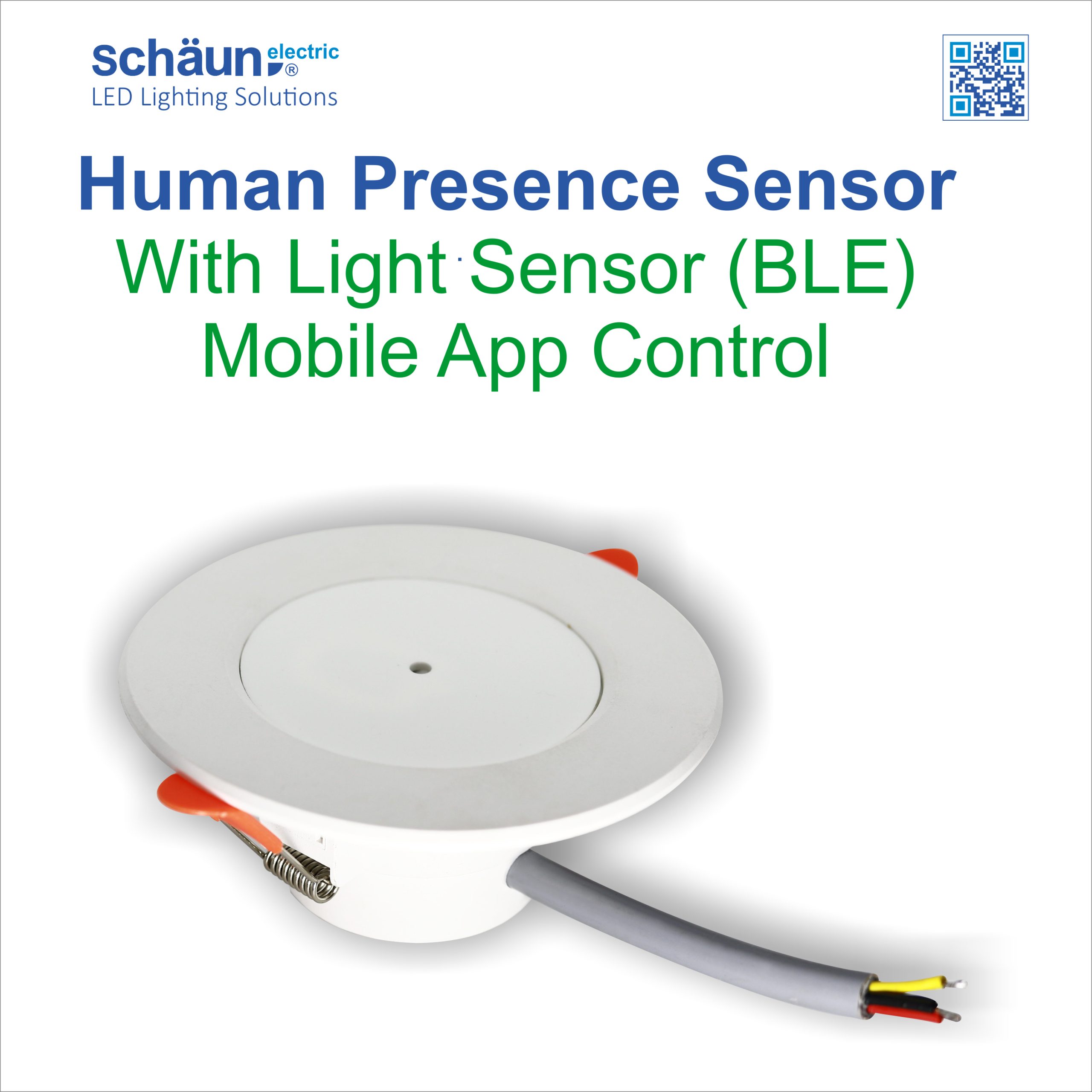

Human Presence Sensor – 24GHz mmWave Radar Switch (SCH-LD2410C)
Detects human presence in moving and static states using advanced 24GHz mmWave radar technology. Unlike PIR sensors, it can sense micro-motions such as breathing and sitting. Integrated switch design allows direct control of lights or fans without any external con
Human Presence Sensor – 24GHz mmWave Radar Switch
SCH-LD2410C | Smart Occupancy Detection
The SCH-LD2410C Human Presence Sensor is a next-generation 24GHz mmWave radar-based presence detection switch designed to detect humans even when completely still. It provides accurate, real-time occupancy detection for modern smart lighting and automation systems.
This sensor integrates the radar module and switching circuit into a single compact unit, allowing it to directly switch AC loads such as lights or fans — eliminating the need for microcontrollers, relays, or smart hubs.
HOW IT WORKS
Using 24GHz FMCW radar technology, the sensor continuously analyzes reflections from the human body. Even the smallest movements like breathing or posture changes are detected, ensuring the system knows when a space is truly occupied.
Once no human presence is detected, the sensor turns the load OFF after an adjustable delay time, helping reduce energy waste.
🔹 KEY FEATURES
✔ Detects human presence (moving & static)
✔ Senses micro-motions (breathing, sitting, standing)
✔ Real-time detection & reporting
✔ Direct load switching – no controller required
✔ Works through glass, plastic & thin wood
✔ Reliable in darkness, sunlight, fog & temperature changes
✔ Adjustable detection distance & delay time
✔ Compact design – ideal for ceiling or wall installation
✔ Long life & low power consumption
🔹 TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Radar Frequency | 24 – 24.25 GHz (ISM Band) |
| Detection Type | Human presence & micro-motion |
| Detection Range (Wall Mount) | Up to ~6 m |
| Detection Range (Ceiling Mount) | Up to ~6 m |
| Beam Angle | 100° × 80° |
| Output | Direct switch output (800 Watt) |
| Input Voltage | 100 – 240V AC |
| Delay Time | Adjustable (1s – 120s) |
| Operating Temperature | −25°C to +85°C |
| Humidity | 5% – 95% RH |
| Recommended Mounting Height | ≤ 4.5 m |
| Installation | Ceiling / Wall mount |
| Module Size | Compact integrated design |

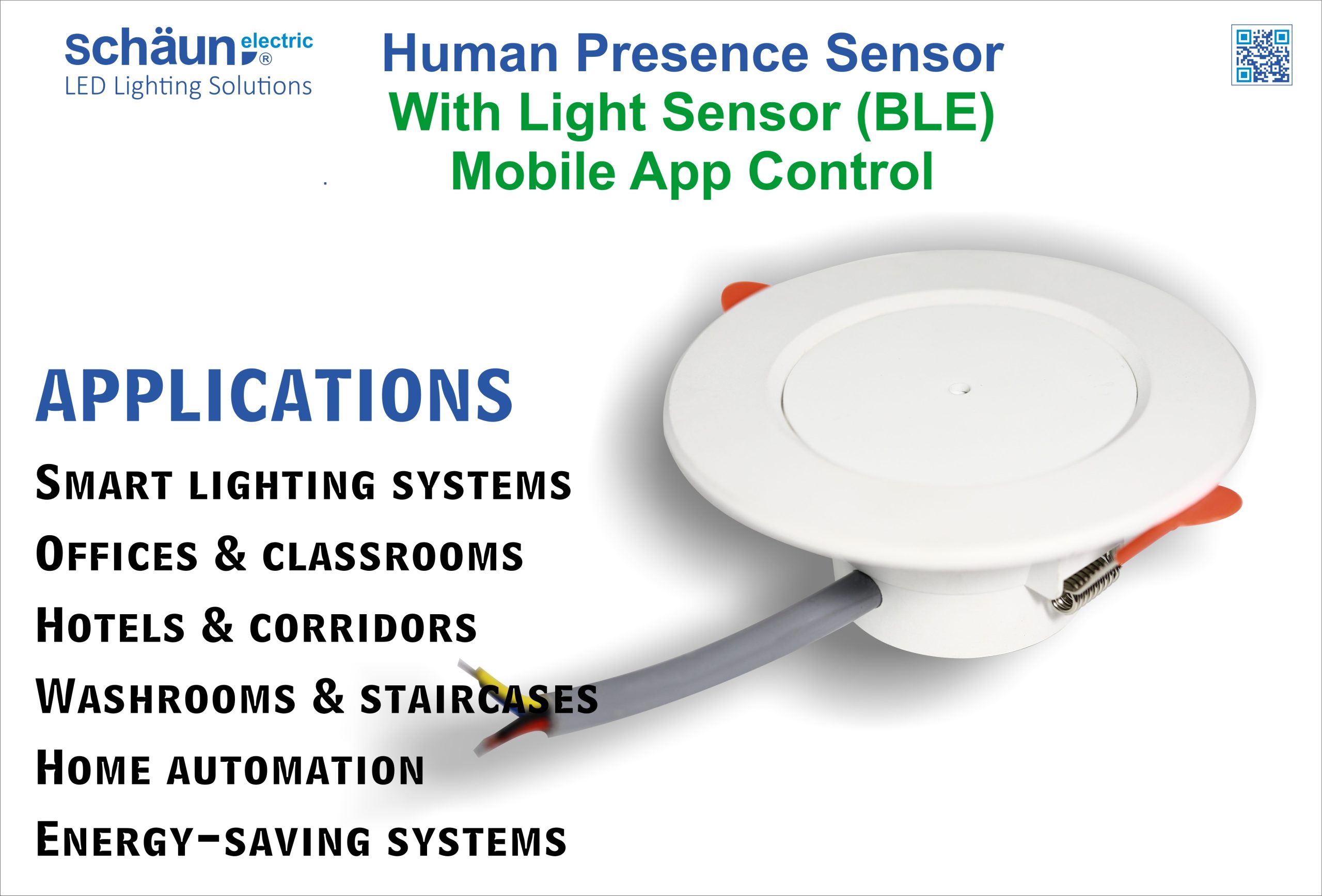

🔹 APPLICATIONS
-
Smart lighting systems
-
Offices & classrooms
-
Hotels & corridors
-
Washrooms & staircases
-
Home automation
-
Energy-saving systems
Description
Smart Human Presence Detection Technology
The SCH-LD2410C Human Presence Sensor is an advanced millimeter-wave radar sensor designed to detect human presence accurately, whether a person is moving or completely still. Unlike traditional PIR sensors, SCH-LD2410C can sense micro-motions such as breathing, ensuring reliable detection in real time.
This makes it an ideal solution for smart lighting, energy saving systems, security automation, and smart buildings.
Key Features
🔹 Human Detection (Moving & Static)
Detects human presence even when the person is sitting, standing, or sleeping, not just walking or moving.
🔹 Real-Time Presence Reporting
Instant detection and reporting without delay, improving response time for automation systems.
🔹 Adjustable Motion Distance
Customize the detection range according to your room size or application requirements.
🔹 Daylight Adjustment
Configure sensor behavior based on ambient light conditions, perfect for smart lighting and energy optimization.
🔹 Retrigger Time Adjustment
Control how frequently the sensor retriggers, avoiding false switching and improving stability.
🔹 High Accuracy & Reliability
Millimeter-wave radar technology ensures stable performance, unaffected by temperature, light, or minor environmental changes.
Download User Manual
📘 Human Presence Sensor – User Manual
Model: SCH-LD2410C – 24 GHz mmWave Sensor (Mobile App Control)
Brand: Schäun Electric / SCH-LD2410C
Input Voltage: 100–240 VAC
Max Load: 800 W (≈700 W recommended max, do not exceed)
Detection: Human presence & micro-motion
Mobile App: Hi-Link Radar Tool (Android / iOS) compatible Schäun Electric
🧰 Parts & Wire Colors
| Wire Color | Function |
|---|---|
| Red | Live/Phase AC Input (WAPDA/AC mains line) |
| Black | Neutral AC Input (from mains) |
| Yellow | Output to Load Live/Phase |
| Blue | Output to Load Neutral (linked) |
⚡ Load = the device you want to automatically control (light, fan, etc.).
The sensor switches the load ON/OFF based on human detection. Schäun Electric
🔌 Wiring & Installation
⚠️ WARNING: Always turn off the mains before wiring! If you are not experienced with AC wiring, seek an electrician.
1. Power Input (WAPDA AC mains):
-
Connect Red wire → Live/Phase from mains (220 VAC)
-
Connect Black wire → Neutral from mains
2. Load Output (Controlled device):
-
Connect Yellow wire → Live/Phase of the load (Light/Fan)
-
Connect Blue wire → Neutral of the load
3. Load Rating Limits:
-
Maximum recommended load: 700 W
-
Absolute maximum rating: 800 W (as per sensor spec)Schäun Electric
🚫 Do not exceed 700 W to avoid damage to the sensor or load.
4. Physical Installation Tips:
-
Mount the sensor in a ceiling or wall box with appropriate screws.
-
Keep it away from metal enclosures if possible.
-
Mount at height ≤ 4.5 m for best detection.Schäun Electric
📱 Mobile App Setup (Optional)
The sensor supports mobile app control for configuration and sensitivity adjustment. Use the HLK Radar Tool app (Android/iOS):
-
Power the sensor (after safe wiring).
-
Enable Bluetooth on your phone.
-
Open the app → scan for device starting with HLK-LD2410.
-
Connect and configure: Range, detection delay, sensitivity, etc.
📌 Once connected, you can adjust how quickly the load turns off after no presence, detection sensitivity, and other parameters.
Note: If the app does not detect the sensor, ensure Bluetooth is enabled and sensor is powered. Some firmware versions may require pressing a “Bluetooth enable” toggle in hardware first.
🟢 How It Works
✅ When human presence is detected, the sensor will switch ON the connected load (light/fan).
✅ When no presence is detected for the configured delay time, it will switch OFF.
✅ The delay time and detection sensitivity can be adjusted using the app.
🧠 Tips for Best Results
✔ Orient the sensor so it faces the area you want to cover (corridor, room entrance).
✔ Do not mount inside a metal box that blocks radar waves.
✔ Avoid directing the sensor toward large moving objects (fans, curtains) that might cause false activation.
✔ Adjust detection delay so lights don’t turn off while people are still present. Schäun Electric
⚠ Safety & Compliance
❗ High Voltage Inside — This device switches mains AC.
-
Always power off before wiring.
-
Ensure connections are insulated and secured.
-
Use certified junction boxes and strain relief.
-
Do not exceed 700 W load to protect the sensor.
Specification
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 12.50 × 5.25 × 12.50 cm |
| Outer Diameter | 105 mm |
| Cut Hole Size | 75 mm |
| Max Power | 800 Watt |
| Max Current | 4 Amp |
| AC In Put | 220V |
| Out Voltage | 220V |
| Mobile App | HLK Radar Tool Downloadable |
| LDR-Range | 0-255 Lummus (Adjustable) |
| Adjustable Distance Get | 8 Gate Maxi (6 Meter) (Adjustable) |
| Retrigger Time | 1 Second ~ 120 Second (Adjustable) |
| LDR Trigger Stages | 3 Stages |
by Schäun Electric
